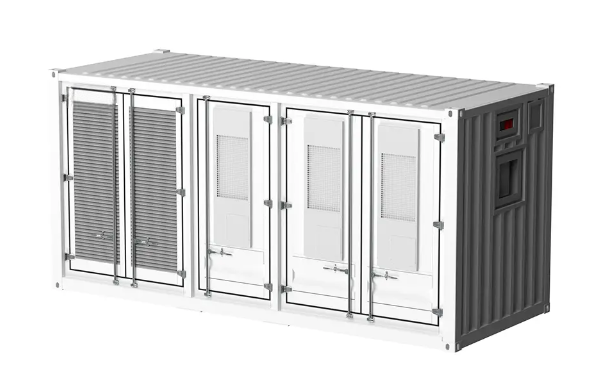

1.2MWH Microgrid Umuyaga-ukonjeje ESS Ibikoresho Bateri Ububiko bw'Inguvu
Igikoresho co gukonjesha ESS gikoreshwa n’umuyaga w’amashanyarazi y’amashanyarazi 1.2 MWh gikoreshwa n’amashanyarazi y’amashanyarazi akomeye kandi ashobora guhinduka. Ishigikira ubufatanye bw'inguvu zitandukanye n'ibintu vyinshi vyinjizwa icarimwe n'uburyo bwo gukora, bihuye vyoroshe n'ibintu bitandukanye biri ku-uruzitiro n'ivyo hanze ya-uruzitiro.
Igishushanyo c'ibikoresho vy'imbere-vyakoranijwe birorosha gutwara, gushiramwo, no gucungera. Guhindura uburyo butagira umurongo bituma umuriro udahagarara kubera imitwaro ikomeye, mu gihe uburinzi bw’umurongo w’amazi n’ugukurikirana ubushuhe mu buryo bw’ubwenge bituma urutonde rugira umutekano, ukwizigirwa, n’ugushikama kw’ibikorwa vy’igihe kirekire.
Ni igiki citwa Microgrid Air-Igikoresho co kubika ingufu mu bikoresho vy'umuyaga?
Igikoresho co kubika inguvu z’amabateri gikoreshwa n’umuyaga w’amashanyarazi 1.2MWh-cooled air-cooled ESS (Energy Storage System) ni umuti wo kubika ingufu ku rugero runini-wuzuye cane. Uyu murongo ushiramwo ibice nyamukuru nk’umurongo w’amabateri y’icuma ca litiyumu (LiFePO4), umurongo wo guhindura ubushobozi bwa 1000kW (PCS), umurongo wo gucunga amabateri (BMS), umurongo wo gucunga inguvu (EMS/SCADA), umurongo wo gucunga ubushuhe (HVAC), n’umurongo wo gukingira umuriro. igisagara co kubika inguvu.
Iyi sisitemu irabereye cane cane ku bikorwa vy'uruzitiro ruto, ishoboza uruzitiro-ruhuye, rudafise-uruzitiro, n'uruzitiro rw'uruzitiro rw'imirongo -ruhuye/ruzimiye-uruzitiro, rutanga abakoresha ubufasha buhamye kandi bwizewe bw'amashanyarazi. Ikoresha umuti wo gucunga ubushuhe bukonjeshwa n’umuyaga-ukonjeshwa (fan{6}}cooled), itanga inyungu nk’imiterere yoroshe, igiciro gito, n’ugutunganywa neza.
Itunganijwe neza ku nguvu zawe
Ubufatanye bw'imirongo mito mito
Ishigikira ingufu nyinshi zikoreshwa icarimwe, bikaba bishoboza gukorana neza n’inguvu zishobora gusubirwamwo, ingufu z’uruzitiro, n’amageneratore kugira ngo uruzitiro ruto rukore neza kandi rudahinduka.
Guhindura uburyo butagira umugozi
Guhindura ubwo nyene hagati y'uburyo bwo gukora bituma amashanyarazi atahagarara ku mizigo ikomeye, bikongera umutekano w'inguvu mu bihe vyose bibiri vy'uruzitiro{0}}bihuye n'ibirwa.
Igiciro-Gukonjesha neza umuyaga
Ubuhinga bwo gucungera ubushuhe bukonjeshejwe n’umuyaga -bukora neza buratanga uburyo bwo kugenzura ubushuhe bwizewe n’ubuhinga buke, bugabanura ibisabwa vyo kwitaho n’ibiciro vyose vyo gukoresha.
Uburinzi bwose bw'umutekano
Uburinzi bw’imirongo y’amashanyarazi, ugukurikirana ubushuhe mu gihe nyaco-, n’uburyo bwo kuzimya umuriro bikorana kugira ngo bigabanye ingorane no kugira ngo uburyo bukore neza kandi buhamye.
Gushiraho mu buryo bworoshe
Uruganda-urworosha gutwara, gushiramwo, no gukoresha, kugabanya igihe co gukoresha no kunoza ubushobozi bwo ku -ku rubuga.
Urusaku ruto-Igishushanyo
Igikoresho gikonjeshwa n’umuyaga-gikora mu gacerere ( Kiri munsi canke kingana na 75 dB ku metero 3), kigabanura ingaruka z’urusaku ku bikorwa vy’ubudandaji, vy’uburaro, canke vy’ibisagara.
Ibisobanuro
|
Ubwoko
|
CESS | ||
|
Gusaba
|
Uruzitiro ruto
|
||
|
Ivyagezwe vya bateri
|
|||
|
Ubwoko bw'agace
|
LFP 3.2V/314Ah
|
||
|
Igikoresho ca bateri
|
20S1P/20,096 kWh
|
||
|
Gutunganya sisitemu
|
240S5P
|
||
|
Inguvu z'umuriro
|
768V
|
||
|
Urutonde rw'umuriro
|
648~864V
|
||
|
Inguvu za Sisitemu
|
1205,76 kWh
|
||
|
Igiciro co kwishura/gusohoka
|
0.5P
|
||
|
Ubuzima bw'ingendo
|
6000
|
||
|
Ivyagezwe vy'umuyagankuba
|
|||
|
Max. Injiza Inguvu
|
600kW 660kW 720kW
|
||
|
Igikoresho c'umuriro
|
250~640V
|
||
|
Ubwinshi bwa MPPT
|
10 11 12
|
||
|
Igisohoka ca AC
|
|||
|
Inguvu zigereranywa
|
500 kW
|
||
|
Inguvu z'umuriro
|
400V
|
||
|
Igiharuro c'ubu
|
722A
|
||
|
Incuro z'ibikorwa
|
50Hz/60Hz
|
||
|
Inkomezi
|
1Kurongora~1Gusubira inyuma
|
||
|
Ivyagezwe vya Sisitemu
|
|||
|
Ubushobozi bwa Sisitemu
|
86%
|
||
|
Ubuyobozi bw'ubushuhe
|
Umuyaga-wakonjejwe
|
||
|
Uburyo bwo gukingira umuriro
|
Igikoresho c'umuyaga/Igikoresho c'umuriro
|
||
|
Ubushuhe bwo gukoresha
|
-20~+55 degre (>45 degre Gukuraho)
|
||
|
Ubukonje bwo gukoresha
|
0~95% (Nta -ugukomera)
|
||
|
Urusaku rwo gukoresha
|
Muto canke bingana na 75 dB(A) @3 m
|
||
|
Max. Uburebure bwo gukoresha
|
4000m (>2000m gukuraho)
|
||
|
Uburinzi bwo kwinjira
|
IP54
|
||
|
Uburyo bwo guhanahana amakuru
|
Etereni
|
||
|
Max. Ibice bihuye (Izimye-Uruzitiro)
|
4
|
||
|
Uburemere
|
19T
|
||
|
Ingano (Uburebure*Uburebure)
|
6058*2438*2896mm
|
||
|
Ivyagezwe vy'icemezo
|
UN38.3, MSDS, IEC 62619, EN 62477, EN 62933-5-2, EN IEC 61000-6-2/4, EN 62109-1/2, G99, EN 50549-1, NRS 097-2-1, IEC61726. 61683
|
||
Umuyaga-Uburyo bwo gucunga ubushuhe bukonjejwe
Ingingo ngenderwako y'ubuhinga bwo gukonjesha umuyaga:
Uburyo bwo gucunga ubushuhe bukonjeshwa n’umuyaga-bukoresha umuyaga nk’uburyo bwo guhindura ubushuhe, bugashika ku kugenzura ubushuhe bw’amabateri biciye mu bikoresho vy’ugukonjesha umuyaga vy’inganda n’uburyo bw’imiyoboro bwateguwe neza. Ibintu nyamukuru biyiranga ni imiterere yoroshe n’igiciro gito, ariko umuvuduko wo gukuraho ubushuhe n’ubushobozi bwayo ni bito cane, bikaba bituma ibereye imigambi yo kubika inguvu n’ibipimo bito vy’ubushuhe buva ku mabati.
Intambwe z'umuyoboro w'umuyaga:
Kugira ngo umuntu ashobore gutsinda intege nke z’uburyo bwa kera bwo gucunga ubushuhe bwo mu bice vy’amabateri, nk’ugukonja buhoro buhoro be n’ukudakora neza, iyo nzira ikoresha ubuhinga bushasha bwo gukoresha imiyoboro y’umuyaga:
Hejuru-ugutanga, imbere-ugusubiza uburyo bw'umuyaga:
Ivyo bikoresho bikoresha umuyaga mu nganda bishirwa ku mpera imwe y’uruzitiro rw’aho amabateri akorera, ubushobozi bwo gukonjesha burengeye ubundi bwose bujanye n’ububasha burengeye ubw’amabateri bwo gukuraho ubushuhe. Igisohoka c’umuyaga co hejuru gifatanye n’umuyoboro w’umuyaga utera intambwe.
01
Uguhingura umuvuduko w'umuyaga:
Uburebure bw’umuyoboro w’umuyaga buragabanuka buhorobuhoro ukurikije iyo umuyaga ugenda, ivyo bikaba bituma umuvuduko w’umuyaga uri ku nzira yose usohoka usa kandi umuyaga ukonnye ugasohoka mu buryo buringaniye.
02
Uburyo bwo kuyobora uruhome rw'ikirere:
Hagati y’aho amabateri ashirwa n’uruhome rw’ibikoresho, hashirwaho uruhome rw’umuyaga, rukaba rufatanye n’umuyoboro w’umuyaga uri hejuru, rukayobora mu buryo buringaniye umuyaga ukonnye mu masandugu y’amabateri.
03
Ubushuhe bwo gukwiragira umuyoboro:
Imirongo y’ugukuraho ubushuhe ishirwa hagati y’ibice bibiri vyose vy’amabateri biri imbere mu gasandugu k’amabateri, bikaba bihuza uruhome rw’umuyaga n’inzira y’amabateri, ivyo bikaba bituma ubushuhe buva mu bice vy’amabateri bwongerekana.
04
Ingamba zo kugenzura ubushuhe:
Ihindura ubwayo hagati y’uburyo bwo gushusha n’uburyo bwo gukonjesha bishingiye ku bushuhe bwo mu karere kugira ngo igumye ifise ubushuhe bwiza bwo gukoresha.
05
Gukonjesha umuyaga n'ubuhinga bwo gukonjesha amazi kugereranya
| Ingano yo kugereranya | Igishushanyo co gukonjesha umuyaga | Igishushanyo co gukonjesha amazi |
|---|---|---|
| Ubushuhe bwo guhindura neza | Ubushuhe buri hagati, itandukaniro ry'ubushuhe rigenzurwa hafi ya degre 5 | Hejuru, itandukaniro ry'ubushuhe rigenzurwa muri degre 3 |
| Igiciro ca Sisitemu | Hasi, inyungu igaragara mu giciro co gushiramwo | Igiciro kinini, ariko gishobora kugabanya igiciro c'ubuzima bwose |
| Ibikorwa vyo mu kirere | Bisaba umwanya w'umuyoboro w'umuyaga, uburemere bw'inguvu buke cane | Igishushanyo gikomeye, ~40% y'ubutaka bwo kuzigama ku bushobozi bumwe |
| Gutunganya bigoranye | Biroroshe, nta ngorane yo gusohoka | Biragoye cane, bikenewe kugenzura ingorane zo gusohoka kw'amazi akonjesha |
| Ibintu bishobora gukoreshwa | Ububiko bw'ibikoresho vy'uburemere buke bw'amashanyarazi, ububiko bw'ikibanza c'itumanaho | Imigambi yo gutanga ubushuhe bwinshi, ibidukikije bikomeye (nk'akarorero, ahantu h'umunyu mwinshi wo ku nkengera y'ikiyaga, ivyumba vy'amabateri) |
| Urugero rw'urusaku | Ni hejuru cane (urusaku rw'umuyaga) | Hasi cane |
| Ibikorwa vyo gukuraho ubukonje | Ifise ubushobozi bwo gukuraho ubukonje, ishobora kugabanya ubukonje bwo mu mutima | Bisaba ibindi bikoresho |
Gushiramwo ibicuruzwa n'isoko
Ubu buryo bwo kubika inguvu bugenewe cane cane ibice vy’isoko bikurikira:
Ubucuruzi n'inganda (C&I) ububiko bw'inguvu ibikorwa
Inguvu zikwiragijwe n'imirongo y'amashanyarazi
Uff-umuyagankuba mu bice vya kure (ibirwa, ibice vy'ubucukuzi, n'ibindi)
Uburyo bwo gusubiza inyuma amashanyarazi vyihutirwa
Uruzitiro-uruhande rw'isonga ry'ugushavura n'ibikorwa vyo gutegeka incuro
Inyishu zo kubika inguvu ku bigo vy'inguvu zishobora gusubirwamwo
Uburyo bwo gukingira umutekano
Uburyo bwo gukingira umutekano bufise utugingo ngengabuzima twinshi:
Umutekano w’uburyo bwo kubika inguvu ni co kintu gihambaye cane co kwitwararika mu bijanye n’uguhingura. Ubu buhinga bukoresha uburyo bwo gukingira umutekano bufise ibice vyinshi, bushizeho uburyo bwo gukingira umutekano bushitse ku nzego zine: utugingo ngengabuzima tw’amabateri, ibice, uburyo, n’uburyo bwo gukingira umuriro.
BMS (Ubuhinga bwo gucunga amabateri) ibikorwa:
Gukurikirana umuriro n'amashanyarazi: Igihe nyaco-co kuronka umuriro wose n'amashanyarazi yose
Gutahura ivy'ukwikingira: Igihe nyaco-gukurikirana kw'umuriro mwinshi -ivyiza n'ibibi vy'ukwikingira kw'isi
Uburinganire butakora: Uburinganire burengeye ubundi bwa 30mA kugira ngo ukomeze guhuza utugingo ngengabuzima
Gukurikirana utugingo ngengabuzima: BMU yose igenzura amashanyarazi y’utugingo ngengabuzima 16-24 n’imirongo 4 y’ubushuhe mu gihe nyaco
Dual CAN Communication: Ivyuma vyo mu mutima n’ivyo hanze biratandukanywa kugira ngo habeho ivy’uguhanahana amakuru bitekanye kandi vyizewe .
Uburinzi bw'umutekano: Uburinzi bwinshi ku gushaja cane, gusohoka cane-, gusohoka cane, amakosa y'ivyuma, gushuha cane, itandukaniro ry'umuriro, itandukaniro ry'ubushuhe, n'ibindi.
Igereranyo rya SOC/SOH: Igereranyo ry’imiterere y’amashanyarazi n’imiterere y’ubuzima, ukuri Biri munsi canke bingana na 8%
Gupima amakosa: Gupima neza ubushuhe, umuriro, umuriro, ivyuma bifatanya, amafizi, amasensori, n’ivy’itumanaho
Gukurikirana kure: Gufasha kwandika amakosa n'imimerere, ubushobozi buke-butegereje, n'ubuto bwo gukangura-igikorwa
Uburyo bwo gukingira umuriro
Uburyo bwo gukingira umuriro bukoresha uburyo bwo gukingira umuriro bufise inzira nyinshi -bumenya umuriro, bugatera inkengeri, bugatuma uburyo bwo kuzimya umuriro bukora:
- Uburyo bwo kumenya: Igikoresho co gupima umwotsi + Igipima ubushuhe + Igipima ubukonje
- Igikoresho co kuzimya umuriro: Heptafluoropropane (HFC-227EA)
- Uburyo bwo kubikoresha: Gucungera ubwavyo, gucungera n'amaboko, n'ugukoresha vyihutirwa (uburyo butatu)
Ivyabaye mu gushira mu ngiro
Izuba ryinjijwemwo, Ububiko, n'Ugushaja:
Uburyo bwo kubika inguvu ku bibanza vyo gushaja, bishobora gutuma habaho ugukorana kw’inguvu z’izuba, ububiko bw’inguvu, n’ugushaja.
Inguvu zo gusubiza inyuma vyihutirwa:
Gutanga amashanyarazi y’inyuma ku bikorwa remezo bihambaye nk’ibitaro n’ibibanza vy’amakuru, kugira ngo amashanyarazi adacike igihe amashanyarazi azimye.
Ibikorwa vy'inyongera vy'uruzitiro:
Kugira uruhara mu gushavura kw'isonga ry'uruzitiro, gutegeka incuro, no gutanga ubushobozi bwo gucungera ibikorwa kugira ngo umuntu aronke inyungu.
Ugushiramwo inguvu nshasha:
Uburyo bwo kubika inguvu z’inguvu z’izuba n’iz’umuyaga, gutuma inguvu zisohoka zigenda neza no kugabanya ugugabanya ingufu z’umuyaga n’iz’izuba.
Ububiko bw'inguvu z'ubudandaji n'inganda:
Ku bibanza vy’inganda, amasoko manini manini, ibibanza vy’amakuru, amahoteli, n’ahandi, bikaba bishoboka ko umuntu ashobora gushavura ku musozi no kwuzuza ibiyaya kugira ngo umuyagankuba ugabanuke.
Ubuhinga bwa Microgrid:
Ikora uruzitiro ruto rwigenga rufise inguvu z’izuba, inguvu z’umuyaga, amageneratore ya dizeli, n’ibindi, rukorana n’uruzitiro rukuru canke rwigenga iyo bikenewe, rutanga uruzitiro rudahinduka mu bice vya kure, mu birwa, mu bice vy’ubucukuzi bw’amabuye y’agaciro, n’ibindi.
Inyungu nyamukuru
Ivyinjijwe cane kandi vyose-muri-Kimwe:
Ivyo bikoresho vyose bishizwe mu gitereko gisanzwe, vyateguwe mu ruganda, kandi ntibisaba gushirwa canke gukoreshwa. Ishobora gutwarwa kure cane biciye mu nzira no mu kiyaga, ivyo bikaba bituma iryoha kandi ikora neza.
Ukwaguka kw'ibice n'uguhinduka:
Ishobora guhindurwa bivanye n’ivyo umukoresha akeneye, ifise ubushobozi butandukanye bwa bateri kugira ngo ihure n’ibintu bitandukanye vyo gukoresha be n’ivyo bisabwa.
Umutekano mwinshi n'Ukwizigirwa:
Bateri za litiyumu iron phosphate zacitse ihitamwo ryiza mu bikorwa vyo kubika inguvu kubera umutekano wazo mwinshi, ubuzima buramba, n’igiciro gito.
Ubuzima buramba n’igiciro gito:
Ubuzima bw’ingendo Burengeye canke bungana n’incuro 4000, ubuzima bw’umugambi bw’imyaka 10, bituma igiciro gito ku kilowatt-isaha mu kiringo cose c’ubuzima bwayo.
Uburongozi bw'Ibikorwa n'Ibungabunga vy'Ubwenge:
Urubuga rw'igicu rwo kugenzura kure, gupima mu buryo bw'ubwenge, no kwitaho imbere y'igihe, kugabanya ibiciro vyo gukoresha no kwitaho.
Ubushobozi bwo kwimenyereza ibidukikije:
Ntibigarukira ku kibanza, irashobora gukora mu bidukikije bitandukanye, igatanga ubushobozi bukomeye bwo kwimenyereza.
Yaba mu bikorwa bitagira uruzitiro, mu gushigikira uruzitiro rugoyagoya, canke mu bikorwa vy’ubufatanye vy’inguvu nyinshi birimwo ingufu z’izuba n’iz’amavuta ya dizeli, uburyo bwo kubika inguvu z’umuyaga w’uruzitiro rwa 1.2 MWh bushobora gukora nk’igice c’ishimikiro c’ubuhinga bwo gutanga inguvu nyinshi canke bwigenga. ubushobozi bwo gukingira inguvu no kuzirungika ku migambi.
